WorkBench

The deployment of the visualization console can refer to the document Workbench Deployment chapter.

1. Product Introduction

IoTDB Visualization Console (Workbench) is the official IoTDB Enterprise Edition visualization component provided by Timecho. It supports table-model database and table management, data queries, data import and export, AI analysis, trend analysis, and permission management through a graphical interface.

2. Instructions for Use

The IoTDB visualization console includes the following functional modules:

Functional Module	Functional Description
Instance Management	Supports creating, editing, and deleting instances, connection testing, and the instance relationship graph.
Home	Supports viewing cluster activation status, server clock, database and table counts, node status, node version, physical machine IP addresses, and node monitoring metrics.
Database Management	Supports creating, viewing, deleting, refreshing, and searching databases.
Table Management	Supports creating, viewing, modifying, deleting, refreshing, searching, importing, and exporting table schemas.
Data Management	Supports selecting columns, setting query time, filtering by device, and importing and exporting CSV/XLSX files.
SQL Operations	Supports entering and executing single or multiple SQL statements, viewing and exporting results, and shortcut operations.
AI Analysis	Supports forecasting, result downloads, model import, one-click fine-tuning, and batch model deletion.
Real-time Trend	Supports viewing real-time trends by database, table, device, and measurement, cursor calculations, PNG export, and commonly used templates.
Historical Trend	Supports viewing historical trends by time range, adjusting the overview range, cursor calculations, PNG export, and commonly used templates.
Permission Management	Supports user management, role management, and database/table-level data permissions.

Main feature showcase

• Home

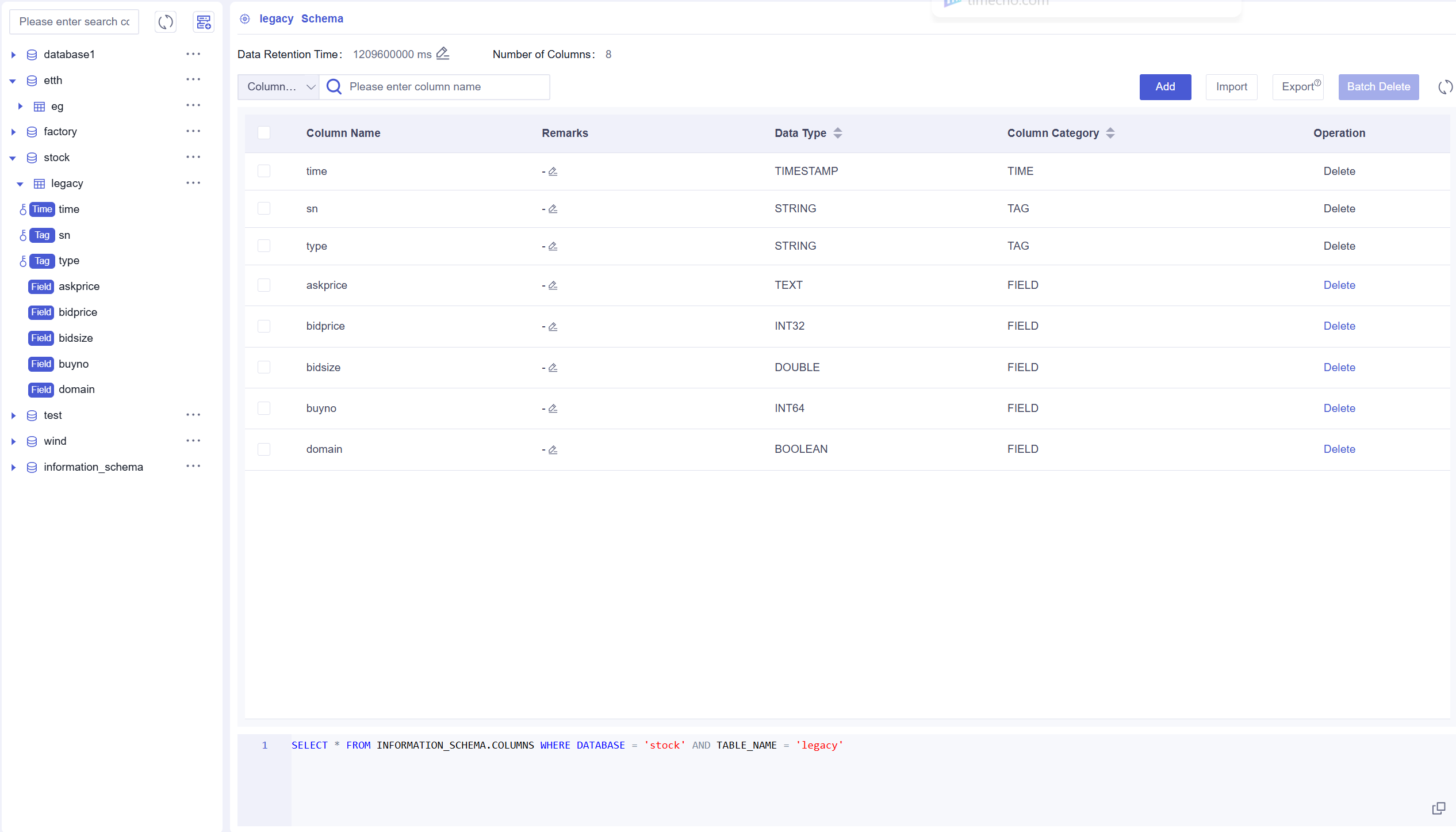

• Data Management

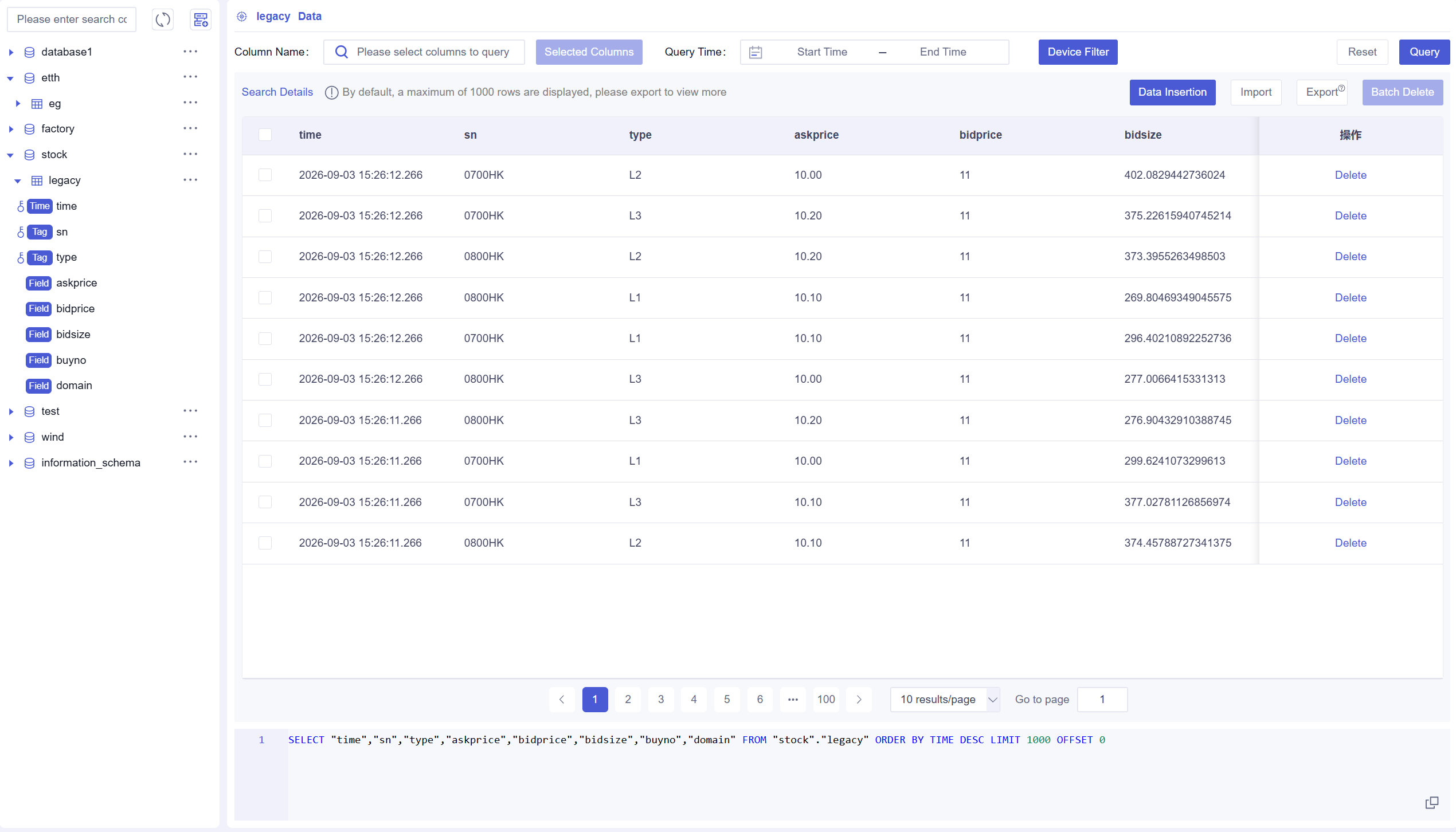

• Data Query

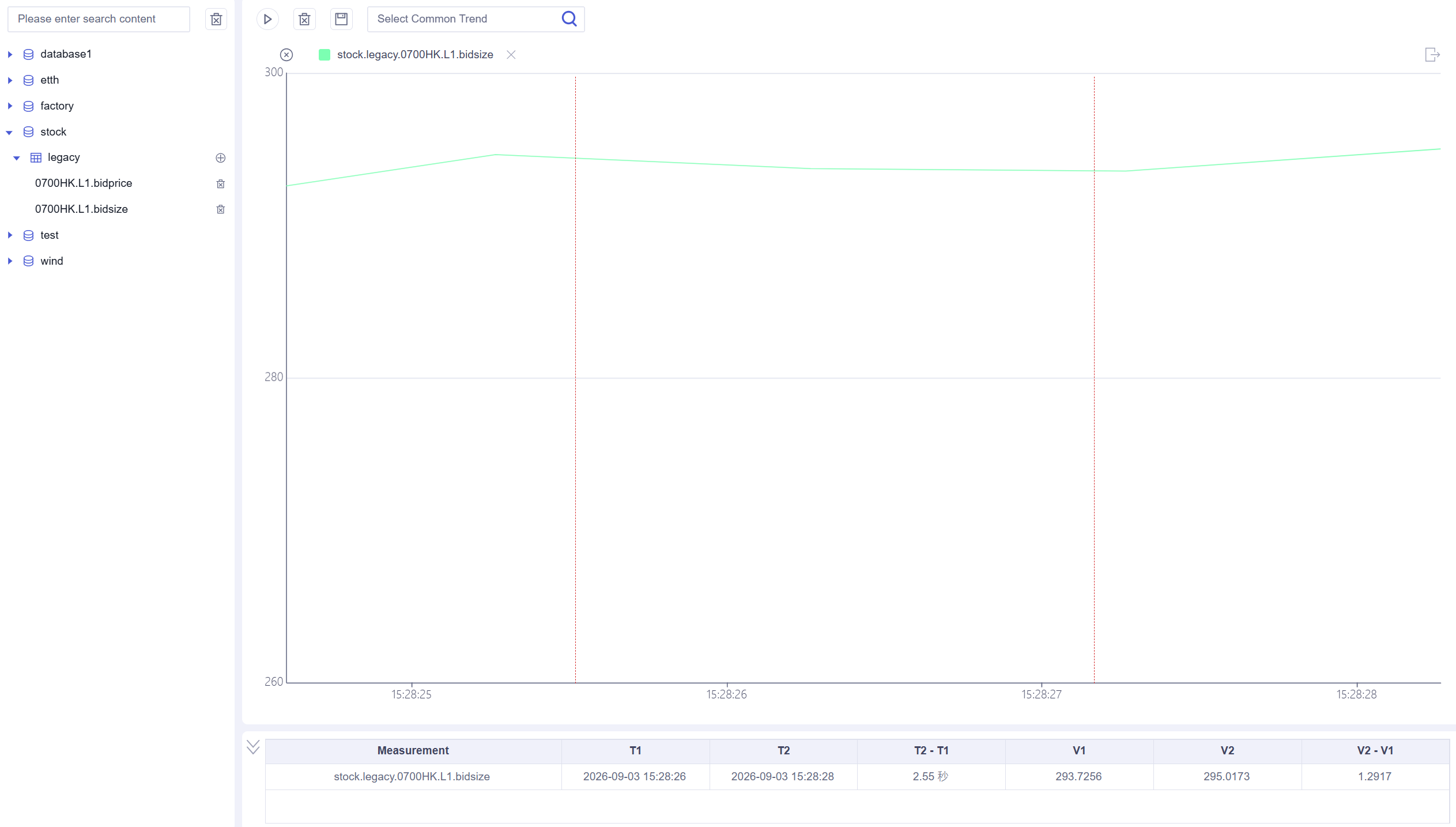

• Trend
