Apache Spark

1. Functional Overview

IoTDB provides the Spark-IoTDB-Table-Connector to integrate IoTDB's table model with Spark, enabling data read/write operations in Spark environments through both DataFrame and Spark SQL interfaces.

1.1 DataFrame

DataFrame is a structured data abstraction in Spark, containing schema metadata (column names, data types, etc.) and serving as the primary data carrier between Spark operators. DataFrame transformations follow a lazy execution mechanism, where operations are only physically executed upon triggering an action (e.g., writing results or invoking collect()), thereby optimizing resource utilization by avoiding redundant computations.

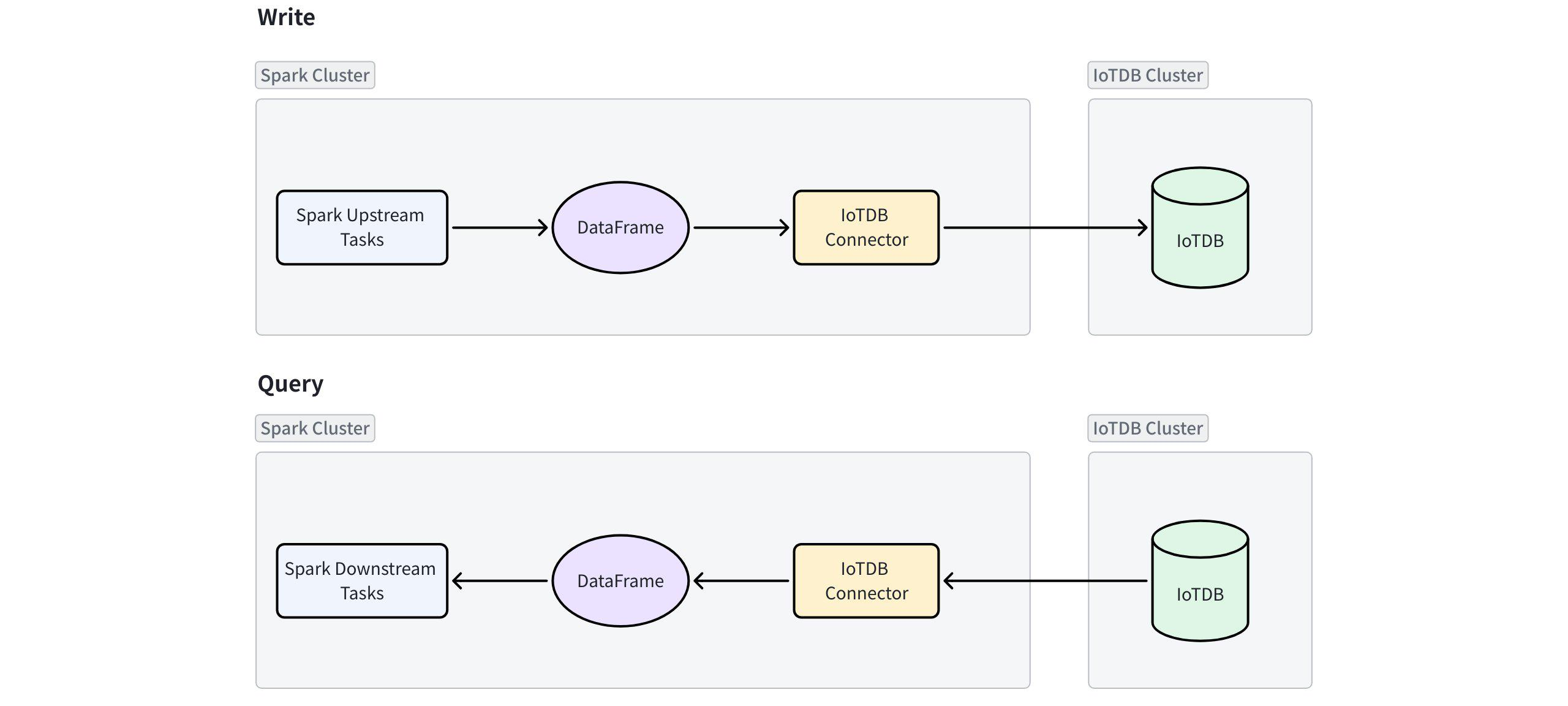

The Spark-IoTDB-Table-Connector allows:

• Write: Processed DataFrames from upstream tasks can be directly written into IoTDB tables.

• Read: Data from IoTDB tables can be loaded as DataFrames for downstream analytical tasks.

1.2 Spark SQL

Spark clusters can be accessed via the Spark-SQL Shell for interactive SQL execution. The Spark-IoTDB-Table-Connector maps IoTDB tables to temporary external views in Spark, enabling direct read/write operations using Spark SQL.

2. Compatibility Requirements

Software	Version
Spark-IoTDB-Table-Connector	2.0.3
Spark	3.3-3.5
IoTDB	2.0.1+
Scala	2.12
JDK	8,11

3. Deployment Methods

3.1 DataFrame

Add the following dependency to your project’s pom.xml:

<dependency>
    <groupId>org.apache.iotdb</groupId>
    <artifactId>spark-iotdb-table-connector-3.5</artifactId>
    <version>2.0.3</version>
</dependency>

3.2 Spark SQL

1. Download the Spark-IoTDB-Table-Connector JAR from the official repository.

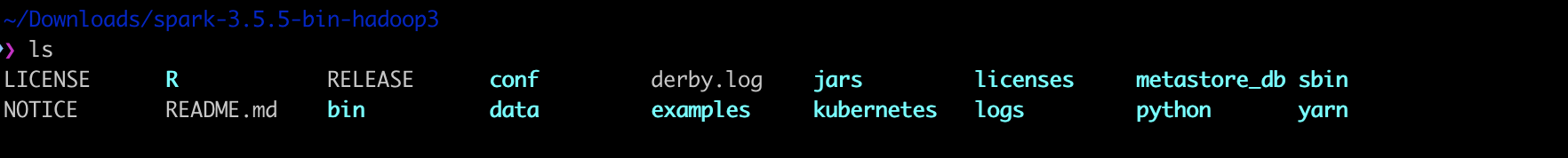

2. Copy the JAR file to the ${SPARK_HOME}/jars directory.

4. Usage Guide

4.1 Reading Data

4.1.1 DataFrame

val df = spark.read.format("org.apache.iotdb.spark.table.db.IoTDBTableProvider")
  .option("iotdb.database", "$YOUR_IOTDB_DATABASE_NAME")
  .option("iotdb.table", "$YOUR_IOTDB_TABLE_NAME")
  .option("iotdb.username", "$YOUR_IOTDB_USERNAME")
  .option("iotdb.password", "$YOUR_IOTDB_PASSWORD")
  .option("iotdb.url", "$YOUR_IOTDB_URL")
  .load()

4.1.2 Spark SQL

CREATE TEMPORARY VIEW spark_iotdb
   USING org.apache.iotdb.spark.table.db.IoTDBTableProvider
   OPTIONS(
   "iotdb.database"="$YOUR_IOTDB_DATABASE_NAME",
   "iotdb.table"="$YOUR_IOTDB_TABLE_NAME",
   "iotdb.username"="$YOUR_IOTDB_USERNAME",
   "iotdb.password"="$YOUR_IOTDB_PASSWORD",
   "iotdb.urls"="$YOUR_IOTDB_URL"
);

SELECT * FROM spark_iotdb;

4.1.3 Parameters

Parameter	Default	Description	Mandatory
iotdb.database	—	IoTDB database name (must pre-exist in IoTDB)	Yes
iotdb.table	—	IoTDB table name (must pre-exist in IoTDB)	Yes
iotdb.username	root	IoTDB username	No
iotdb.password	root	IoTDB password	No
iotdb.urls	127.0.0.1:6667	IoTDB DataNode RPC endpoints (comma-separated for multiple nodes)	No

4.1.4 Key Notes

IoTDB supports several filtering conditions, column pruning, and OFFSET/LIMIT pushdown.

• The filtering conditions that can be pushed down include:

Name	SQL( IoTDB)
IS_NULL	expr IS NULL
IS_NOT_NULL	expr IS NOT NULL
STARTS_WITH	starts_with(expr1, expr2)
ENDS_WITH	ends_with(expr1, expr2)
CONTAINS	expr1 LIKE '%expr2%'
IN	expr IN (expr1, expr2,...)
=	expr1 = expr2
<>	expr1 <> expr2
<	expr1 < expr2
<=	expr1 <= expr2
>	expr1 > expr2
>=	expr1 >= expr2
AND	expr1 AND expr2
OR	expr1 OR expr2
NOT	NOT expr
ALWAYS_TRUE	TRUE
ALWAYS_FALSE	FASLE

Constraints:

• CONTAINS requires constant values for expr2.
• Non-pushdown-capable child expressions invalidate the entire conjunctive clause.

• Column Pruning:

Supports specifying column names when constructing IoTDB SQL queries to avoid transferring unnecessary column data.

• Offset/Limit Pushdown:

Supports pushdown of OFFSET and LIMIT clauses, enabling direct integration of Spark-provided pagination parameters into IoTDB queries.

4.2 Writing Data

4.2.1 DataFrame

val df = spark.createDataFrame(List(
  (1L, "tag1_value1", "tag2_value1", "attribute1_value1", 1, true),
  (2L, "tag1_value1", "tag2_value2", "attribute1_value1", 2, false)))
  .toDF("time", "tag1", "tag2", "attribute1", "s1", "s2")

df
  .write
  .format("org.apache.iotdb.spark.table.db.IoTDBTableProvider")
  .option("iotdb.database", "$YOUR_IOTDB_DATABASE_NAME")
  .option("iotdb.table", "$YOUR_IOTDB_TABLE_NAME")
  .option("iotdb.username", "$YOUR_IOTDB_USERNAME")
  .option("iotdb.password", "$YOUR_IOTDB_PASSWORD")
  .option("iotdb.urls", "$YOUR_IOTDB_URL")
  .save()

4.2.2 Spark SQL

CREATE TEMPORARY VIEW spark_iotdb
   USING org.apache.iotdb.spark.table.db.IoTDBTableProvider
   OPTIONS(
   "iotdb.database"="$YOUR_IOTDB_DATABASE_NAME",
   "iotdb.table"="$YOUR_IOTDB_TABLE_NAME",
   "iotdb.username"="$YOUR_IOTDB_USERNAME",
   "iotdb.password"="$YOUR_IOTDB_PASSWORD",
   "iotdb.urls"="$YOUR_IOTDB_URL"
);

INSERT INTO spark_iotdb VALUES ("VALUE1", "VALUE2", ...);
INSERT INTO spark_iotdb SELECT * FROM YOUR_TABLE;

4.2.3 Key Notes

• No Auto-Schema Creation: Tables/columns must pre-exist in IoTDB.
• Order Sensitivity:
  • INSERT INTO VALUES: Values must follow IoTDB table schema order (as per DESC TABLE).
  • INSERT INTO SELECT: Columns must exist in the target table. Mismatched column counts trigger IllegalArgumentException.
• Column Name Mapping: DataFrame or INSERT INTO SELECT with explicit column names allows schema order flexibility.

4.3 Data Type Mapping

1. Read (From IoTDB To Spark)

IoTDB Type	Spark Type
TsDataType.BOOLEAN	BooleanType
TsDataType.INT32	IntegerType
TsDataType.DATE	DateType
TsDataType.INT64	LongType
TsDataType.TIMESTAMP	LongType
TsDataType.FLOAT	FloatType
TsDataType.DOUBLE	DoubleType
TsDataType.STRING	StringType
TsDataType.TEXT	StringType
TsDataType.BLOB	BinaryType

2. Write (From Spark To IoTDB)

The mapping primarily converts data into IoTDB Tablet format for writing.

During the Tablet ingestion process into IoTDB, secondary type conversion will be automatically performed if data type mismatches occur.

Spark Type	IoTDB Type
BooleanType	TsDataType.BOOLEAN
ByteType	TsDataType.INT32
ShortType	TsDataType.INT32
IntegerType	TsDataType.INT32
LongType	TsDataType.INT64
FloatType	TsDataType.FLOAT
DoubleType	TsDataType.DOUBLE
StringType	TsDataType.STRING
BinaryType	TsDataType.BLOB
DateType	TsDataType.DATE
Others	TsDataType.STRING

4.4 Security

1. Authentication & Authorization

• Credentials: Username/password are required for IoTDB access.
• Access Control:
  • Write: Requires INSERT privilege on the target table/database.
  • Read: Requires SELECT privilege on the target table/database.

2. Constraints

• Automatic table/column creation is unsupported.
• Schema validation is enforced during writing.
